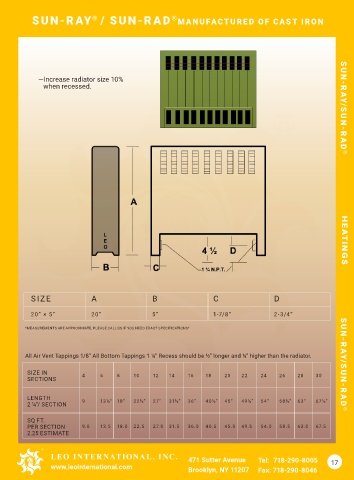

SUN-R AY / SUN-R AD MANUFACTURE D OF CAST IRON

—Increase radiator size 10% SU
when recessed. N-R

AY/SU

N-R
A
D ®

SIZE A B C D HEATINGS

20” × 5” 20” 5” 1-7/8” 2-3/4”

*MEASUREMENTS ARE APPROXIMATE, PLEASE CALL US IF YOU NEED EXACT SPECIFICATIONS* SU

N-R
All Air Vent Tappings 1/8” All Bottom Tappings 1 ¼” Recess should be ½” longer and ¼” higher than the radiator. AY/SU

SIZE IN 4 6 8 10 12 14 16 18 20 22 24 26 28 30
SECTIONS N-R

LENGTH 9 13½” 18” 22½” 27” 31½” 36” 40½” 45” 49½” 54” 58½” 63” 67½” A
2 ¼”/ SECTION D ®

SQ FT.
PER SECTION 9.0 13.5 18.0 22.5 27.0 31.5 36.0 40.5 45.0 49.5 54.0 58.5 63.0 67.5
2.25 ESTIMATE
