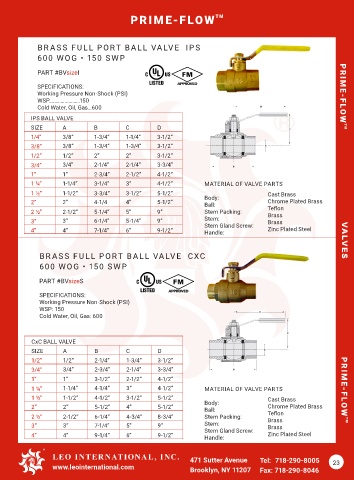

Page 23 - Leo International Catalog

VALVES OW
PRIME-FL TM

BR AS S FULL PORT BALL VALVE IPS
600 WOG • 150 SWP

PART #BVsizeI PRIM

SPECIFICATIONS:
Working Pressure Non-Shock (PSI)
WSP……………………150
Cold Water, Oil, Gas…600 E-FLOW

IPS BALL VALVE
SIZE A B C D TM
1/4” 3/8” 1-3/4” 1-1/4” 3-1/2”
3/8” 3/8” 1-3/4” 1-3/4” 3-1/2”
1/2” 1/2” 2” 2” 3-1/2”
3/4” 3/4” 2-1/4” 2-1/4” 3-3/4”
1” 1” 2-3/4” 2-1/2” 4-1/2”
1 ¼” 1-1/4” 3-1/4” 3” 4-1/2” MATERIAL OF VALVE PARTS
1 ½” 1-1/2” 3-3/4” 3-1/2” 5-1/2” Cast Brass
2” 2” 4-1/4 4” 5-1/2” Body: Chrome Plated Brass
Ball:
2 ½” 2-1/2” 5-1/4” 5” 9” Stem Packing: Teflon
Brass
3” 3” 6-1/4” 5-1/4” 9” Stem: Brass
Stem Gland Screw:
4” 4” 7-1/4” 6” 9-1/2” Handle: Zinc Plated Steel VALVES

BR AS S FULL PORT BALL VALVE CXC
600 WOG • 150 SWP

PART #BVsizeS

SPECIFICATIONS:
Working Pressure Non-Shock (PSI)
WSP: 150
Cold Water, Oil, Gas: 600

CxC BALL VALVE
SIZE A B C D
1/2” 1/2” 2-1/4” 1-3/4” 3-1/2”
3/4” 3/4” 2-3/4” 2-1/4” 3-3/4” PRIM
1” 1” 3-1/2” 2-1/2” 4-1/2”
1 ¼” 1-1/4” 4-1/4” 3” 4-1/2” MATERIAL OF VALVE PARTS
1 ½” 1-1/2” 4-1/2” 3-1/2” 5-1/2” Cast Brass E-FLOW
2” 2” 5-1/2” 4” 5-1/2” Body: Chrome Plated Brass
Ball:
2 ½” 2-1/2” 6-1/4” 4-3/4” 8-3/4” Stem Packing: Teflon TM
Brass
3” 3” 7-1/4” 5” 9” Stem: Brass
Stem Gland Screw:
4” 4” 9-1/4” 6” 9-1/2” Handle: Zinc Plated Steel

LEO INTERNATIONAL, INC. 471 Sutter Avenue Tel: 718-290-8005

www.leointernational.com Brooklyn, NY 11207 Fax: 718-290-8046 23
