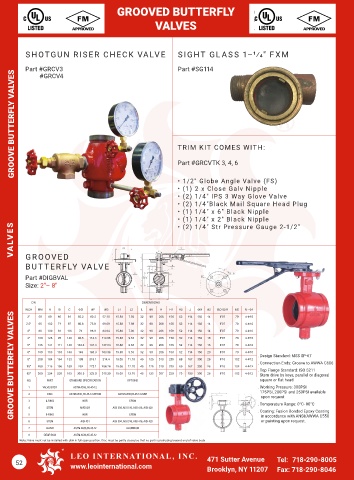

Page 52 - Leo International Catalog
P. 52
GROOVED BUTTERFLY
VALVES
VALVES
SHOTGUN RISER CHECK VALVE SIGHT GL AS S 1–1/4" F XM
Part #GRCV3 Part #SG114
GROOVE BUTTERFLY VALVES
#GRCV4
TRIM KIT COMES WITH:
Part #GRCVTK 3, 4, 6
• 1/2" Globe Angle Valve (FS)
• (1) 2 x Close Galv Nipple
• (2) 1/4" IPS 3 Way Glove Valve
• (2) 1/4"Black Mail Square Head Plug
• (1) 1/4" x 6" Black Nipple
• (1) 1/4" x 2" Black Nipple
• (2) 1/4" Str Pressure Gauge 2-1/2"
VALVES
GROOVED
BUT TERFLY VALVE
Part #DIGBVAL
Size: 2"– 8"
DN DIMENSIONS
INCH MM A B C ФD ФF ФG L1 L2 L ФK H H1 H2 J ФM Ф2 ISO 5211 ФE N - Ф1
GROOVE BUTTERFLY VALVES
2" 50 89 65 81 50.3 60.3 57.15 15.88 7.93 32 90 206 158 52 114 150 14 F07 70 4-Ф10
2.5" 65 102 71 97 60.8 73.0 69.09 15.88 7.93 32 90 206 158 52 114 150 14 F07 70 4-Ф10
3" 80 109 81 116 76 88.9 84.94 15.88 7.93 32 90 206 158 52 114 150 14 F07 70 4-Ф10
4" 100 128 95 148 98.5 114.3 110.08 15.88 9.53 32 90 206 158 52 114 150 16 F07 70 4-Ф10
5" 125 141 111 148 122.6 141.3 137.03 15.88 9.53 32 90 206 158 52 114 150 16 F07 70 4-Ф10
6" 150 153 133 148 148 168.3 163.96 15.88 9.53 32 90 206 158 52 114 150 20 F07 70 4-Ф10
. Design Standard: MSS SP-67
8" 200 184 164 133 199 219.1 214.4 19.05 11.10 45 125 310 239 69 167 300 26 F10 102 4-Ф12
. Connection Ends: Groove to AWWA C606
10" 250 216 196 159 252 273.1 268.28 19.05 12.70 45 125 310 239 69 167 300 26 F10 102 4-Ф12
. Top Flange Standard: ISO 5211
12" 300 254 226 165 300.5 323.9 318.29 19.05 12.70 45 125 307 229 73 190 300 28 F10 102 4-Ф12 Stem drive by keys, parallel or diagonal
NO. PART STANDARD SPECIFICATION OPTIONS square or flat head
1 VALVE BODY ASTM A536, 65-45-12 . Working Pressure: 300PSI
175PSI, 200PSI and 250PSI available
2 DISC ASTM A536, 65-45-12+EPDM ASTM A536,65-45-12+NBR
upon request
3 0-RING NBR EPDM
. Temperature Range: 0°C- 80°C
4 STEM ANSI 431 AISI 304, AISI 316, AISI 416, AISI 420
. Coating: Fusion Bonded Epoxy Coating
5 0-RING NBR EPDM in accordance with ANSI/AWWA C550
6 STEM AISI 431 AISI 304, AISI 316, AISI 416, AISI 420 or painting upon request.
7 LEVER ASTM A536,65-45-12 ALUMINUM
8 GEAR BOX ASTM A536,65-45-12
Note: Valve must not be installed with disk in full open position. Disc must be partly closed so that no part is protruding beyond end of valve body
