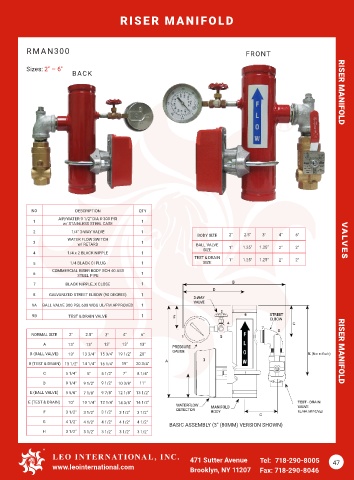

Page 47 - Leo International Catalog

RISE R MANIFOLD

RMAN300 FRONT

Sizes: 2" – 6"
BACK RISER MANIFOLD

NO DESCRIPTION QTY
AIR/WATER-3 1/2" DIA 0-300 PSI
1 1
w/ STAINLESS STEEL CASE
2 1/4" 3-WAY VALVE 1
BODY SIZE 2" 2.5" 3" 4" 6"
WATER FLOW SWITCH VALVES
3 w/ RETARD 1 BALL VALVE
SIZE 1" 1.25" 1.25" 2" 2"
4 1/4 x 2 BLACK NIPPLE 1
TEST & DRAIN 1" 1.25" 1.25" 2"
5 1/4 BLACK CI PLUG 1 SIZE 2"
COMMERCIAL RISER BODY SCH 40 A53
6 STEEL PIPE 1
7 BLACK NIPPLE_X CLOSE 1
8 GALVANIZED STREET ELBOW (90 DEGREE) 1
9A BALL VALVE 300 PSI, 600 WOG UL/FM APPROVED 1

9B TEST & DRAIN VALVE 1

NORMAL SIZE 2" 2.5" 3" 4" 6"
A 13" 13" 13" 13" 13"
B (BALL VALVE) 13" 13 3/4" 15 3/4" 19 1/2" 20" RISER MANIFOLD
B (TEST & DRAIN) 13 1/2" 14 1/4" 16 1/4" 19" 20 3/4"
C 5 1/4" 5" 5 1/2" 7" 8 1/4"
D 9 1/4" 9 1/2" 9 1/2" 10 3/8" 11"
E (BALL VALVE) 5 5/8" 7 1/8" 9 7/8" 12 1/8" 13 1/2"
E (TEST & DRAIN) 10" 10 1/4" 12 1/4" 14 3/5" 14 1/2"
F 3 1/2" 3 1/2" 3 1/2" 3 1/2" 3 1/2"
G 4 1/2" 4 1/2" 4 1/2" 4 1/2" 4 1/2" BASIC ASSEMBLY (3" (80MM) VERSION SHOWN)
H 3 1/2" 3 1/2" 3 1/2" 3 1/2" 3 1/2"
