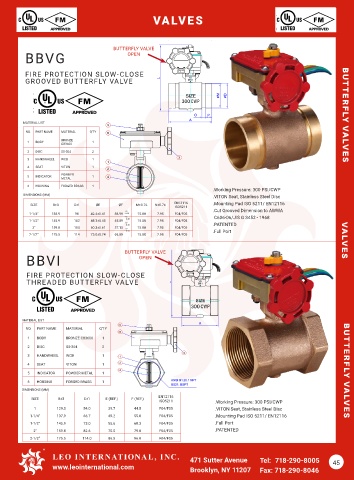

VALVES

BUTTERFLY VALVE
BBVG OPEN

FIRE PROTECTION SLOW-CLOSE BUT
GROOVED BUTTERFLY VALVE

MATERIAL LIST TERFLY VALVES
NO. PART NAME MATERIAL Q’TY
1 BODY BRONZE 1
C83600
2 DISC SS-304 2
3 HANDWHEEL WCB 1
4 SEAT VITON 1
5 INDICATOR POWDER 1
METAL
6 HOUSING FORGED BRASS 1
.Working Pressure: 300 PSI/CWP
DIMENSIONS (MM) .VITON Seat, Stainless Steel Disc
SIZE B±3 C±1 ØE ØF M±0.76 N±0.76 EN12116 .Mounting Pad ISO 5211/ EN12116
ISO5211
+ 0 .Cut Grooved Dimension to AWWA
1-1/4” 138.9 98 42.4±0.41 38.99 - 0.38 15.88 7.95 F04/F05
+ 0 C606-06/JIS G 3452 - 1968
1-1/2” 145.9 102 48.3±0.48 45.09 - 0.38 15.88 7.95 F04/F05
+ 0 .PATENTED
- 0.38
2” 159.8 104 60.3±0.61 57.15 + 0 15.88 7.95 F04/F05
- 0.45 .Full Port
2-1/2” 175.5 114 73.0±0.74 69.09 15.88 7.95 F04/F05 VALVES
BBVI BUTTERFLY VALVE
OPEN
FIRE PROTECTION SLOW-CLOSE
THREADED BUTTERFLY VALVE

MATERIAL LIST
NO. PART NAME MATERIAL Q’TY BUT
1 BODY BRONZE C83600 1
2 DISC SS-304 2
3 HANDWHEEL WCB 1
4 SEAT VITON 1
5 INDICATOR POWDER METAL 1
6 HOUSING FORGED BRASS 1 TERFLY VALVES
DIMENSIONS (MM)
SIZE B±3 C±1 E (REF.) F (REF.) EN12116
ISO5211 .Working Pressure: 300 PSI/CWP
1 129.0 54.0 39.7 44.5 F04/F05 .VITON Seat, Stainless Steel Disc
1-1/4” 137.9 66.7 49.2 55.0 F04/F05 .Mounting Pad ISO 5211/ EN12116
1-1/2” 145.9 73.0 55.6 60.3 F04/F05 .Full Port
2” 159.8 82.6 70.0 79.0 F04/F05 .PATENTED
2-1/2” 175.5 114.0 86.5 96.0 F04/F05

LEO INTERNATIONAL, INC. 471 Sutter Avenue Tel: 718-290-8005

www.leointernational.com Brooklyn, NY 11207 Fax: 718-290-8046 45
