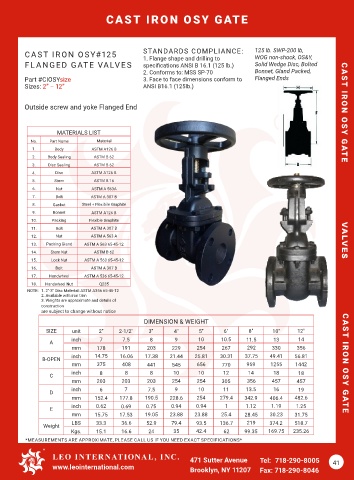

CAST IRON OSY GATE

CAST IRON OSY#125 STANDARDS COMPLIANCE: 125 lb. SWP-200 lb,
WOG non-shock, OS&Y,
1. Flange shape and drilling to
FL ANGED GATE VALVES specifications ANSI B 16.1 (125 lb.) Solid Wedge Disc, Bolted
2. Conforms to: MSS SP-70 Bonnet, Gland Packed,
Part #CIOSYsize 3. Face to face dimensions conform to Flanged Ends
Sizes: 2” – 12” ANSI B16.1 (125lb.)

Outside screw and yoke Flanged End CAST IRON OSY GATE

MATERIALS LIST
No. Part Name Material
1. Body ASTM A126 B
2. Body Sealing ASTM B 62
3. Disc Sealing ASTM B 62
4. Disc ASTM A126 B
5. Stem ASTM B 16
6. Nut ASTM A 563A
7. Bolt ASTM A 307 B
8. Gasket Steel + Flexibile Graphite
9. Bonnet ASTM A126 B
10. Packing Flexible Graphite
11. Bolt ASTM A 307 B
12. Nut ASTM A 563 A
13. Packing Gland ASTM A 563 65-45-12 VALVES
14. Stem Nut ASTM B 62
15. Lock Nut ASTM A 563 65-45-12
16. Bolt ASTM A 307 B
17. Handwheel ASTM A 536 65-45-12
18. Handwheel Nut Q235
NOTE: 1. 2"-3" Disc Material: ASTM A356 65-45-12
2. Available with iron trim
3. Weights are approximate and details of
construction
are subject to change without notice

DIMENSION & WEIGHT
SIZE unit 2" 2-1/2" 3" 4" 5" 6" 8" 10" 12"
A inch 7 7.5 8 9 10 10.5 11.5 13 14
mm 178 191 203 229 254 267 292 330 356

B-OPEN inch 14.75 16.06 17.38 21.44 25.81 30.31 37.75 49.41 56.81
mm 375 408 441 545 656 770 959 1255 1442 CAST IRON OSY GATE
inch 8 8 8 10 10 12 14 18 18
C
mm 203 203 203 254 254 305 356 457 457
inch 6 7 7.5 9 10 11 13.5 16 19
D
mm 152.4 177.8 190.5 228.6 254 279.4 342.9 406.4 482.6
E inch 0.62 0.69 0.75 0.94 0.94 1 1.12 1.19 1.25
mm 15.75 17.53 19.05 23.88 23.88 25.4 28.45 30.23 31.75
Weight LBS 33.3 36.6 52.9 79.4 93.5 136.7 219 374.2 518.7
Kgs. 15.1 16.6 24 35 42.4 62 99.35 169.75 235.26
*MEASUREMENTS ARE APPROXIMATE, PLEASE CALL US IF YOU NEED EXACT SPECIFICATIONS*
