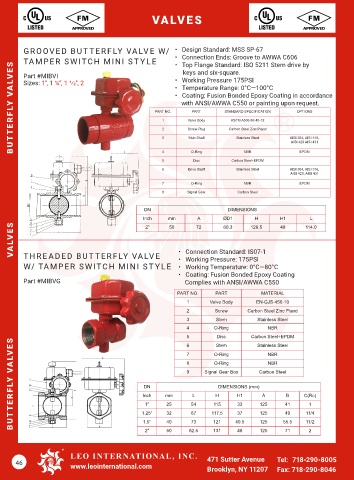

Page 46 - Leo International Catalog

VALVES

GROOVED BUT TERFLY VALVE W/ • Design Standard: MSS SP-67
TAMPER SWITCH MINI ST YLE • Connection Ends: Groove to AWWA C606
• Top Flange Standard: ISO 5211 Stem drive by
LVES Part #MIBVI keys and six-square.
• Working Pressure 175PSI
Sizes: 1”, 1 ¼”, 1 1/2", 2
• Temperature Range: 0°C—100°C
RFLY VA PART NO. • Coating: Fusion Bonded Epoxy Coating in accordance
with ANSI/AWWA C550 or painting upon request.

OPTIONS
PART
STANDARD SPECIFICATION
ASTM A536 65-45-12
TE 1 2 Valve Body Carbon Steel Zinc Pland
Screw Plug
BUT 3 4 Stub Shaft Stainless Steel AISI 304, AISI 316,
AISI 420 AISI 431
NBR
EPDM
O-Ring
5 Disc Carbon Steel+EPDM
6 Drive Shaft Stainless Steel AISI 304, AISI 316,
AISI 420, AISI 431
7 O-Ring NBR EPDM
8 Signal Gear Carbon Steel

DN DIMENSIONS
H
A
L
Inch mm 72 ØD1 128.5 H1 114.0
VALVES • Connection Standard: IS07-1
50
48
2"
60.3
THRE ADED BUT TERFLY VALVE
W/ TAMPER SWITCH MINI ST YLE • Working Pressure: 175PSI
• Working Temperature: 0°C—80°C
• Coating: Fusion Bonded Epoxy Coating
Part #MIBVG Complies with ANSI/AWWA C550
PART NO. PART MATERIAL
1 Valve Body EN-GJS-450-10
2 Screw Carbon Steel Zinc Pland
3 Stem Stainless Steel
4 O-Ring NBR
5 Disc Carbon Steel+EPDM
LVES 6 7 8 O-Ring Stainless Steel
Stem
NBR
O-Ring
NBR
RFLY VA DN 9 Signal Gear Box Carbon Steel

DIMENSIONS (mm)
B
Inch
A
H
L
TE 1.25" mm 54 117.5 H1 125 41 C(Rc)
1
115
1"
25
33
49
11/4
37
32
67
125
BUT 1.5" 40 82.5 121 40.5 125 55.5 11/2
73
131
2
50
71
48
125
2"
