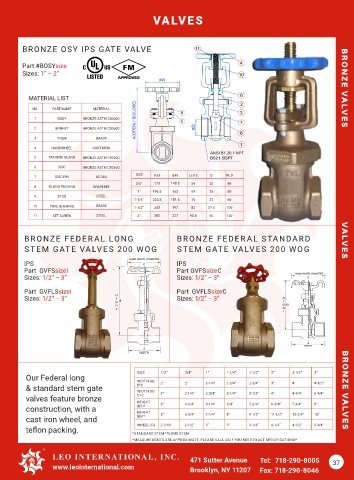

WATE R ME TE RS VALVES

BRONZE OSY IPS GATE VALVE

Part #BOSYsize
Sizes: 1” – 2”

MATERIAL LIST BRONZE VALVES

NO. PART NAME MATERIAL
1 BODY BRONZE ASTM C83600
2 BONNET BRONZE ASTM C83600
3 STEM BRASS
4 HANDWHEEL CAST IRON
5 PACKING GLAND BRONZE ASTM C82600

6 DISC BRONZE ASTM C82600
SIZE A±3 B±3 W_3
7 DISC PIN SS-304 L±0.5 D
3/4" 173 145.5 59 20 80
8 GLAND PACKING GRAPHITE
1" 196.5 163 69 25 80
9 STUD STEEL
1-1/4" 220.5 181.5 75 32 80
10 YOKE BUSHING BRASS 1-1/2" 243 197 82 37.5 100
11 SET SCREW STEEL 2" 282 227 90.5 50 120

BRONZE FEDER AL LONG BRONZE FEDER AL STANDARD VALVES
STEM GATE VALVES 200 WOG STEM GATE VALVES 200 WOG

IPS IPS
Part GVFSsizeI Part GVFSsizeC
Sizes: 1/2” – 3” Sizes: 1/2” – 3”

Part GVFLSsizeI Part GVFLSsizeC
Sizes: 1/2” – 3” Sizes: 1/2” – 3”

SIZE 1/2” 3/4” 1” 1-1/4” 1-1/2” 2” 2-1/2” 3”
Our Federal long WIDTH (A)
& standard stem gate IPS 2” 2” 2-1/4” 2-3/4” 2-3/4” 3” 4” 4-1/2” BRONZE VALVES
WIDTH (A)
valves feature bronze C×C 2” 2-1/4” 2-3/4” 3-1/4” 3-1/2” 4” 4-3/4” 5-1/4”
HEIGHT
construction, with a (B1)* 3” 3-2/4” 4-1/4” 3/4” 5-2/4” 6-3/4” 7-3/4” 9”
HEIGHT
cast iron wheel, and (B)** 5” 5-3/4” 7-1/4” 8” 9-1/2” 11-1/2” 13-3/4” 16”

teflon packing. WHEEL (C) 2-1/43 2-1/2” 3” 3” 3-1/4” 4-1/4” 4-1/2” 5-1/4”
Note: Valve must not be installed with disk in full open position. Disc must be partly closed so that no part is protruding beyond end of valve body *STANDARD STEM **LONG STEM
*MEASUREMENTS ARE APPROXIMATE, PLEASE CALL US IF YOU NEED EXACT SPECIFICATIONS*
