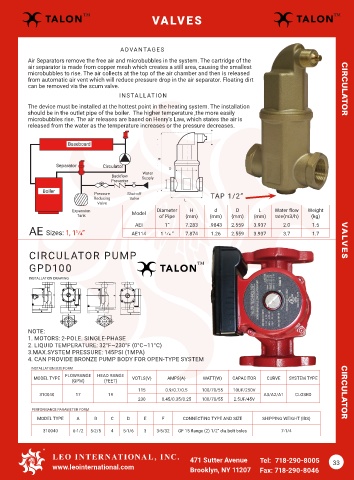

VALVES

ADVANTAGES
Air Separators remove the free air and microbubbles in the system. The cartridge of the
air separator is made from copper mesh which creates a still area, causing the smallest
microbubbles to rise. The air collects at the top of the air chamber and then is released
from automatic air vent which will reduce pressure drop in the air separator. Floating dirt
can be removed via the scum valve. CIRCULATOR
INSTALLATION
The device must be installed at the hottest point in the heating system. The installation
should be in the outlet pipe of the boiler. The higher temperature ,the more easily
microbubbles rise. The air releases are based on Henry’s Law, which states the air is
released from the water as the temperature increases or the pressure decreases.

TAP 1/2”

Diameter H d D L Water flow Weight
Model
of Pipe (mm) (mm) (mm) (mm) rate(m3/h) (kg)
AEI 1“ 7.283 .9843 2.559 3.937 2.0 1.5
AE Sizes: 1, 11/4” AE114 1 1/4 “ 7.874 1.26 2.559 3.937 3.7 1.7 VALVES

CIRCULATOR PUMP
GPD100 TM

INSTALLATION DRAWING

NOTE:
1. MOTORS: 2-POLE. SINGLE-PHASE
2. LIQUID TEMPERATURE: 32°F~230°F (0°C~11°C)
3.MAX.SYSTEM PRESSURE: 145PSI (1MPA)
4. CAN PROVIDE BRONZE PUMP BODY FOR OPEN-TYPE SYSTEM

INSTALLATION SIZE FORM
FLOWRANGE HEAD RANGE
MODEL TYPE VOTLS(V) AMPS(A) WATT(W) CAPACITOR CURVE SYSTEM TYPE
(GPM) (FEET)
115 0.9/0.7/0.5 100/70/55 10UF/250V
310040 17 19 A3/A2/A1 CLOSED CIRCULATOR
230 0.45/0.35/0.25 100/70/55 2.5UF/45V

PERFORMANCE PARAMETER FORM
MODEL TYPE A B C D E F CONNECTING TYPE AND SIZE SHIPPING WEIGHT (IBS)
310040 6-1/2 5-2/5 4 5-1/6 3 3-5/32 GF 15 flange (2) 1/2” dia.bolt boles 7-1/4
